Beschreibung
Sockel 1151, Intel® Z270, 1x PCIe x1, 4xPCIe x16, VGA, DVI, HDMI, 4xM.2, USB 3.1, Purity SoundTM 4 + DTS Connect, W-LAN/ac, Kaby Lake Plattform
Chipsatz: Intel® Z270
CPU-Typen: Intel Celeron/Pentium/Core i3/i5/i7 6th+7th Generation Skylake+Kaby Lake 14nm
Netzwerk: 2x 10/100/1000Mbit Fast Ethernet Dual Intel
Steckplätze: 1x PCIe x1, 4xPCIe x16
Ext

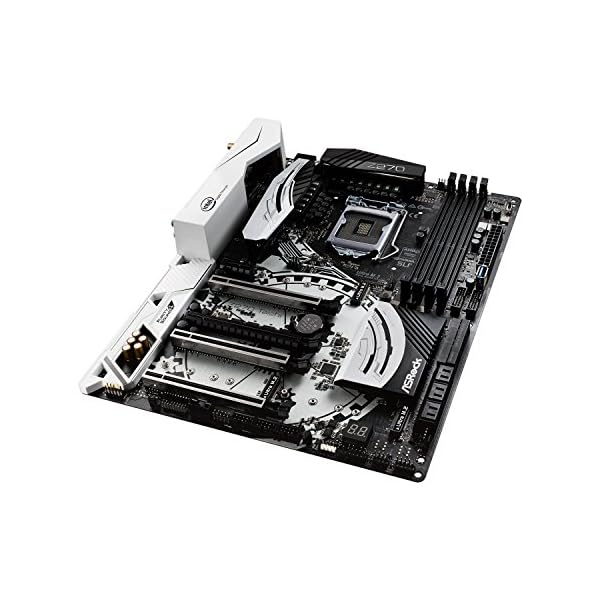

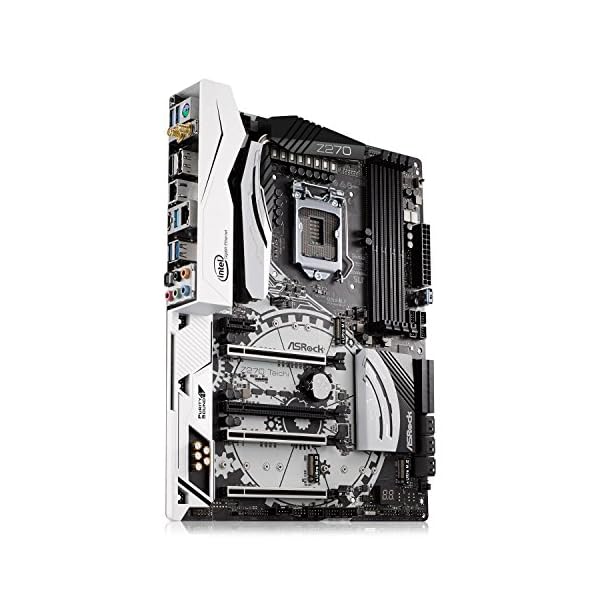

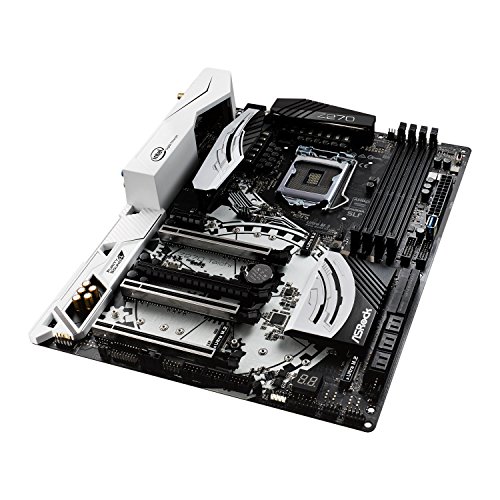

ASROCK Z270 TAICHI S1151 ATX Intel Z270 DDR4
Supports 7th and 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/Celeron®(Socket 1151)
Supports DDR4 3733+(OC)
4 PCIe 3.0 x16, 1 PCIe 3.0 x1

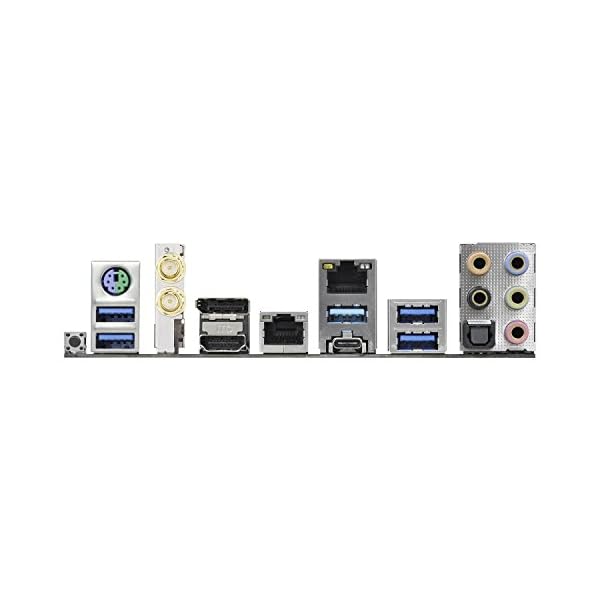

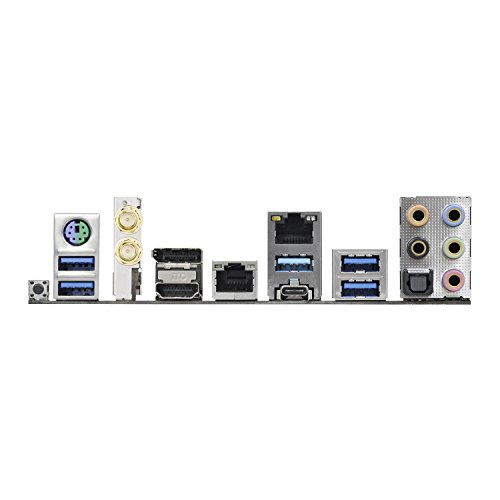

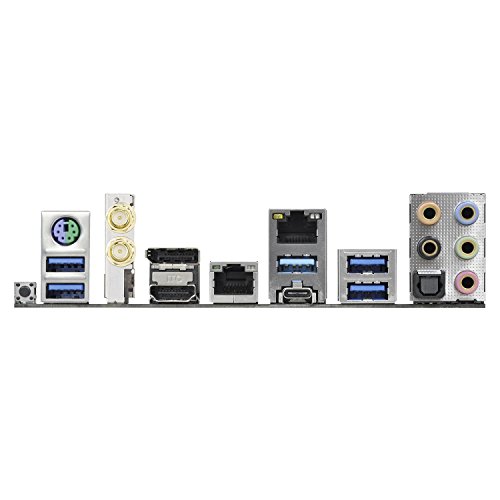

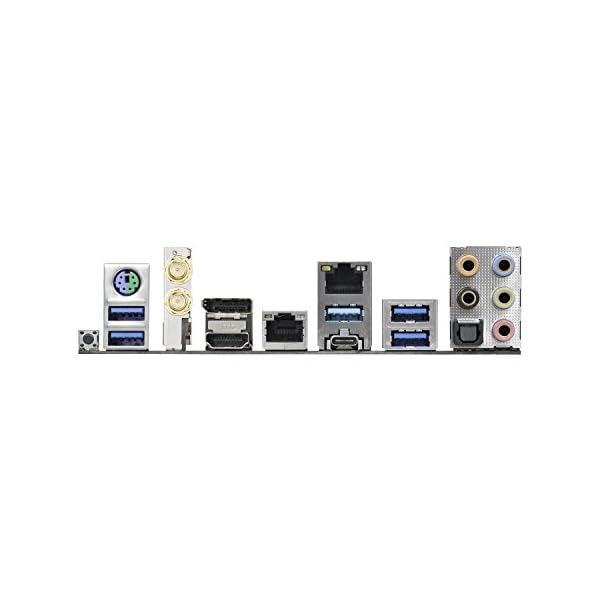

Graphics Output Options: HDMI, Display Port
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity SoundTM 4 & DTS Connect
10 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 9 USB 3.0 (4 Rear, 4 Front, 1 Vertical Type-A)
Dual Intel® Gigabit LAN
Intel® 802.11ac WiFi
ASRock AURA RGB LED
